SYSTEM R-C2
Currently the most innovative automation for milled parts. Produce finished parts automatically.
The vice grips the blanks directly in the magazine. The vice is placed in the machine with the blank as a pallet.
PROMRO Hybrid - the No. 1 robot cells in the R-C2 system
ROBOT CELLS HYBRID RD
Drawer magazine RD for high workpiece weights and maximum unmanned time

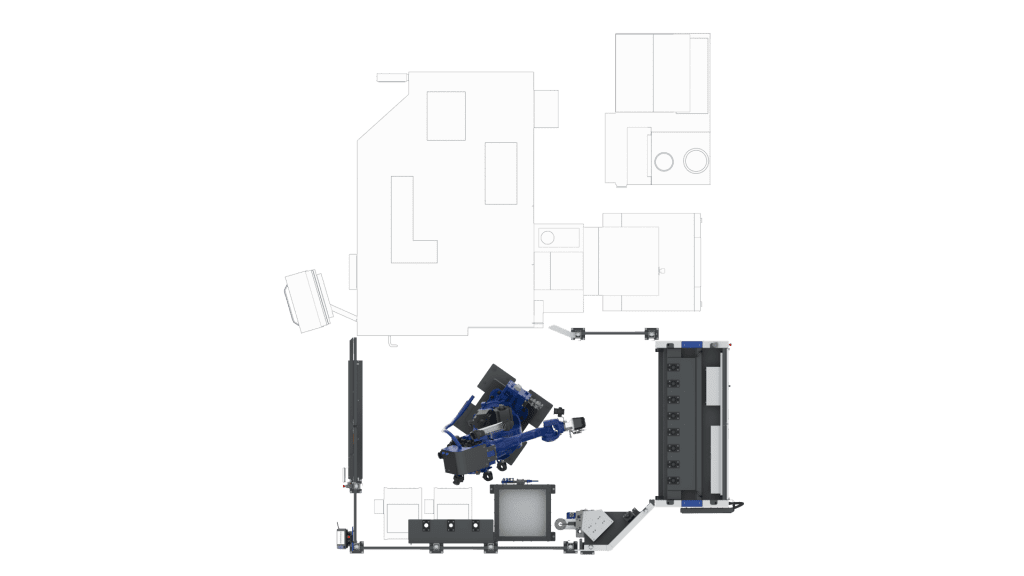

The PROMRO Hybrid RD robot cell not only offers a high workpiece capacity, but also maximum flexibility in terms of the layout plan and the stations and functions that can be integrated.
Experience you can benefit from ...
PROMOT robots load more than 8,000 machine tools
ROBOT CELLS HYBRID ID
Magazine ID with integrated telescopic drawers for reduced installation space
The PROMRO hybrid robot cell ID offers maximum flexibility in terms of stations and functions for small and medium-sized workpieces
Are you planning to automate your machining center?
Let us show you PROMRO Hybrid with System R-C2 now - so you won't regret it later!
Technical data Hybrid ID/RD
| Hybrid ID | Hybrid RD | |
|---|---|---|
| max. payload robot [kg] | 50 / 88 | 50 / 88 |
| max. workpiece weight [kg] | 33 | 33 |
| Magazine | ID drawer | RD drawer |
| Number of drawers | 3 to 5 | 3 to 8 |
| max. magazine area [m²] | 4,56 | 8,33 |
| Unmanned time [h] * | 36 | 51 |
| Lining parts | ●●○ | ●●○ |
| Shaft parts | ○○○ | ○○○ |
| Cubic parts | ●●● | ●●● |
| Saw cuts | ●●● | ●●● |
| Castings | ●●○ | ●●○ |
| for machining center |  | |
| Software Professional | | |
| Job manager | | |
| Multi Batch | | |
| Onepanel | | |
*) max. unmanned time in hours for parts 100x100mm and milling time 10min
